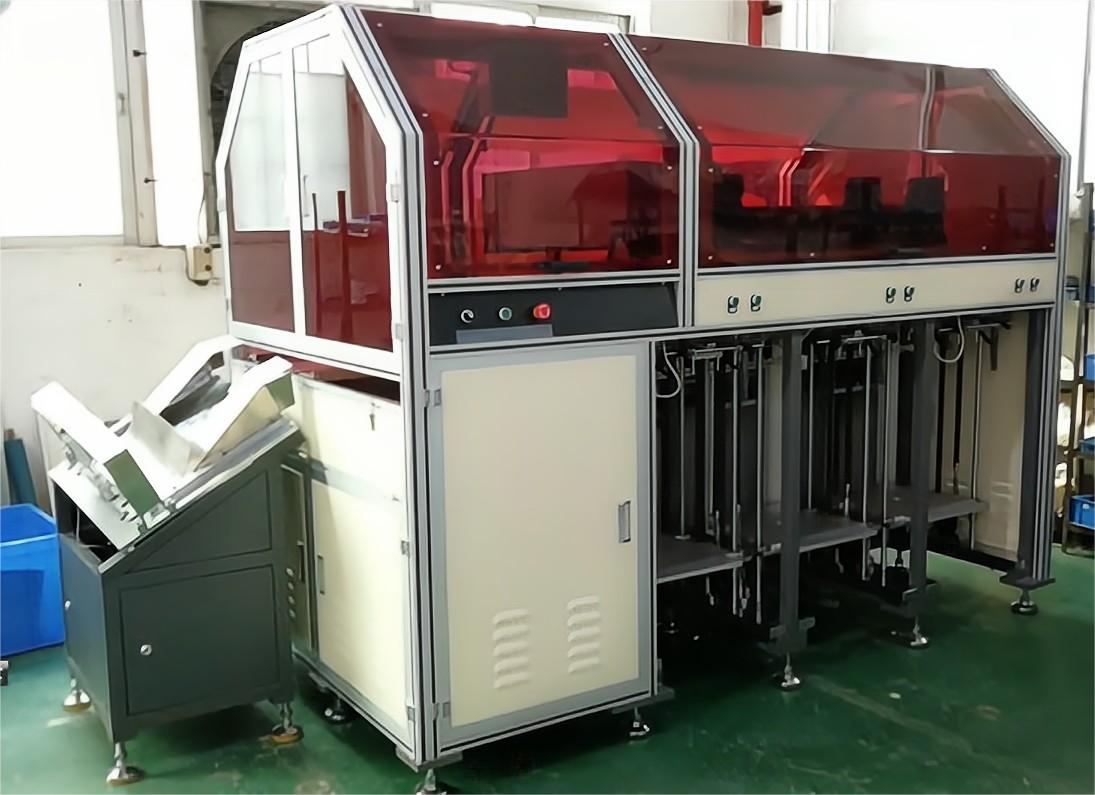

Edge Collation Machine/Smart Card /IOT Equipment

Product Model：WD-EAM-1219

Product Category：Smart Card Equipment

Specifications：

Features:

1.  Feeding Unit:  applying the screw type lift, checking the rest material automatically. There is a reminder when the material is almost finished.

2. Collating Unit: applying the servo drive system and roll ball guide transfer to make transport fast and accurately. The machine will collate once after adding one sheet to make sure the collation accurately. The accuracy could be 0.02 mm.

3. Output Unit: applying gravity and angular surface to make the products drops naturely. It is very  economic.

Option functions:

 Static Products: avoiding the sheets attached together because static, could reduce the double sheets.

 Dust Remover: do the cleaning for the top and bottom sheets, avoid the dirty on the lamination.

 Double sheets checking:  the machine will stop when 2 more sheets feeding.

Appying Area:

This machine is applied for collating the card sheets, it could support more sheet edge collation. Using the touch screen to make the operation easily. Applying the ultrasonic devices to make the welding fast, the welding thickness could reach 1mm. It could apply for multi thickness and material collation. Applying the sensors to check the transfer / collation process / output stack. It has warnings and stop protection function. One operator runs the machine effectively.
