Digital Edge Cutting Machine/Smart Card /IOT Equipment

Digital Edge Cutting Machine/Smart Card /IOT Equipment, 1. Manual/Auto feeding, applying the sensors to make the position. 2. It could cut the sheet edge accurately and tidily.
Send Email:[email protected]

Product details

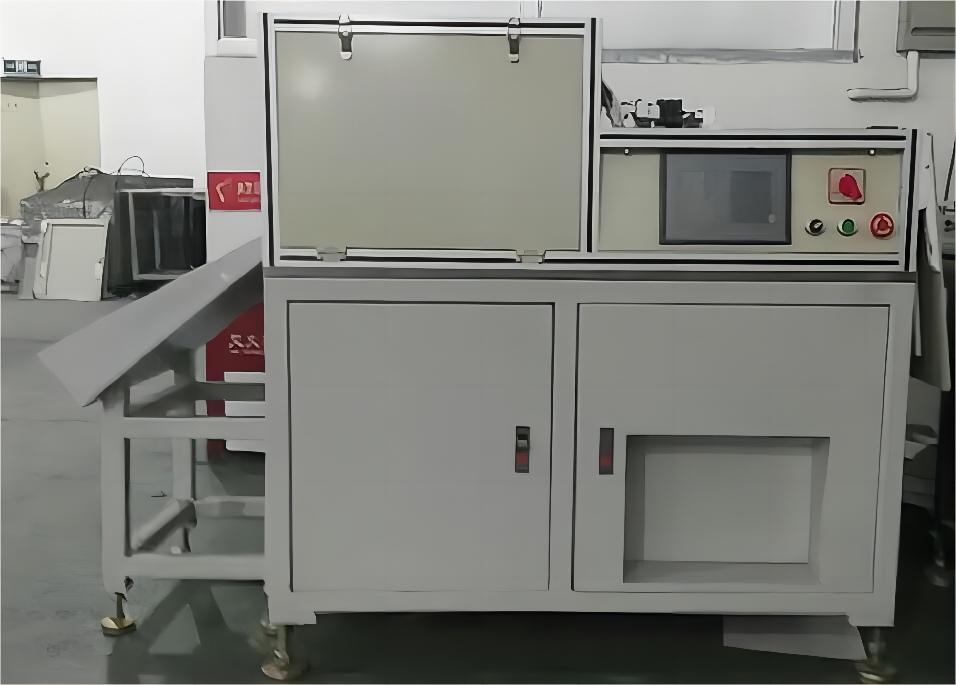

Product Model:WD-KA14-1019

Product Category:Smart Card Equipment

Features:

  1. Manual/Auto feeding, applying the sensors to make the position.

  2. It could cut the sheet edge accurately and tidily.

   3.  It could cut the sheet into stripes accurately and tidily.

   4. Sheet size: 3*8, 4*8, 5*5 (optional)

   5. The stripe width could be adjusted by changing the wheet cutters' space.


Specifications:

Power Source:220V  50HZ
Air Pressure:>6KG/c㎡
Capacity:800 sheets/hour
Air consumption:1L/min
Accuracy:±0.1mm.
Dimension:L1560mm*W950mm*H1480mm
Power: 2KW
Weight:500KG
Material:Paper,PVC,ABS,PET, etc.
Material:it could be customized.
